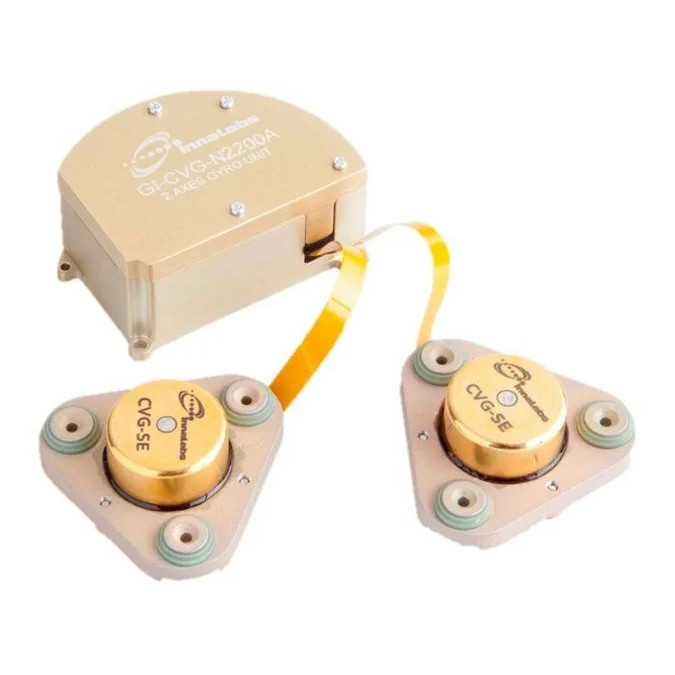

GI-CVG-N2x00A/D GI-CVG-N1x00A/D Gyroscopes

ITEM TYPE: N-Series Gyropscopes

P/Ns: GI-CVG-N2x00A/D GI-CVG-N1x00A/D

High-Performance Gyroscopes

InnaLabs® N-Series Gyroscopes are a range of industrial and tactical grade gyroscopes which delivers less than <10°/hr over the full temperature range.  The high gain of piezoelectric elements delivers best in class noise performance. The control electronics operates in a closed-loop mode providing a high system bandwidth which is essential when operating in highly dynamic environments.
These gyroscopes can facilitate customised mounting solutions and, due to their high dynamic range, low noise and high MTBF, combined with the small size make this gyroscope family the ideal choice for platform stabilisation.



Category:

Description

Dimensions Parameters GI-CVG-N2x00A/D GI-CVG-N1x00A/D
GI-CVG-N2103A1-a Grade Tactical Industrial
Number of Axes 1 or 2
In-run Bias Stability (room temperature, 1σ), deg/hr <0.22 <0.22
Bias Stability (full temperature range, 1σ), deg/hr < 10 < 50
Scale factor error, full temperature range, 1σ < 3,500
Scale factor linearity ≤ 1500
Angular Random Walk, deg/√hr 0.01 typical
Electrical Interface
Bandwidth (-3dB) ≥ 300
Interface Analogue or Digital RS-422
Start-up Time 1 sec typical
Physical Specifications
Weight (each sensitive element) 71 g
Weight (each damper) 26 g
Weight (each electronics with connectors) 105 g (One-Axis)

115g (Two-Axis)

Dimensions, mm H25 x D29.4

(Sensitive Element)

MTBF >500,000 hrs
Built-in Self Test Yes
