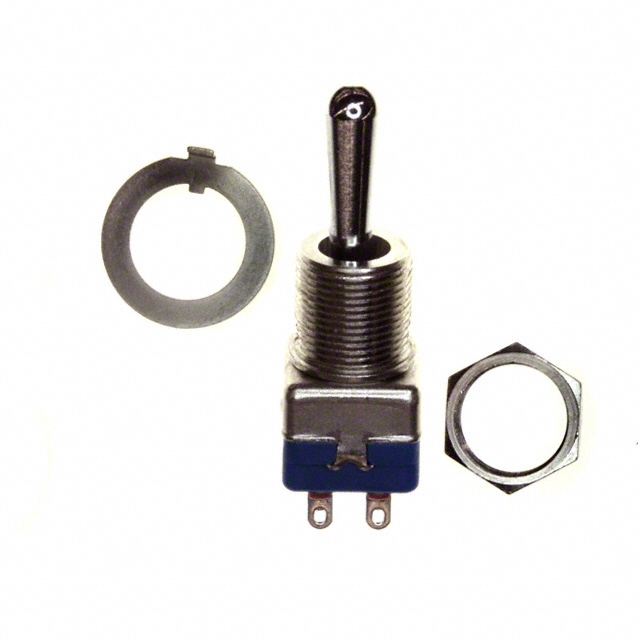

APEM 12149A Toggle Switch NSN: 5930-14-361-1832

Description

Category	Switches
Series	12000
Packaging	Bulk
Circuit	DPDT
Switch Function	On-Off-On
Current Rating	4A (AC/DC)
Voltage Rating – AC	125V
Voltage Rating – DC	30V
Actuator Type	Standard Round
Actuator Length	17.30mm
Illumination	Non-Illuminated
Illumination Type, Color	–
Illumination Voltage (Nominal)	–
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout Dimensions	Circular – 12.50mm Dia
Bushing Thread	15/32-32
Features	Epoxy Sealed Terminals
Actuator Material	Brass, Chrome Plated
Electrical Life	50,000 Cycles
Operating Temperature	-40°C ~ 85°C
