AI-Q-710 Measurement Grade Accelerometer

AI-Q-710 Measurement Grade Accelerometer

Measurement Grade

InnaLabs® Measurement Grade Accelerometers offer compact, ruggedized casing to provide a superbly high vibration and shock resistance. These models have a wide range of civilian applications such as high-speed vehicular control sensors, seismic sensors, and structural integrity monitors.

Performance Statistics

  • Input Range +/- 30 g
  • One-year Repeatability <1,200 ppm
  • Temperature Sensitivity <200 ppm/°C

High-Performing Accelerometer

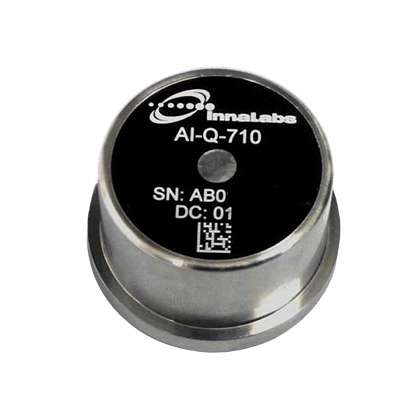

The AI-Q-710 is a measurement grade accelerometer, built with Quartz Flexure technology. Due to its analogue voltage output and excellent long-term repeatability, the AI-Q-710 is an optimal solution for demanding Air, Land, and  Marine Applications.

Key Performance

  • Tactical grade performance.
  • Good Bias.
  • High input range.
  • High stability under temperature changes.
  • High reliability.
  • Internal temperature sensor for thermal compensation.
  • Compact, rugged design.
Category:

Description

Specification

Units Values
Performance
Input Range g ±30
Bias mg <8
One-year Composite Repeatability µg <1200
Temperature Sensitivity µg/°C <70
Scale Factor mA/g 1.23 to 1.43
One-year Composite Repeatability ppm <1200
Temperature Sensitivity ppm/°C <200
Axis Misalignment µrad <2000
Vibration Rectification µg/g2 RMS <50 (50-200 Hz)
<100 (200-750 Hz)
<150 (750-2000 Hz)
Intrinsic Noise µg RMS <7 (0-10 Hz)
<70 (10-500 Hz)
<1500 (500-10000 Hz)
Environment
Operating Temperature °C -55 to +96
Shock g 250
Vibration Peak Sine g, Hz 25g @ 20 to 2000 Hz
Resolution/Threshold µg <1
Bandwidth Hz >300
Temperature Model
Yes
Electrical
Quiescent Current per Supply mA <16
Quiescent Power @±15VDC mW <480
Input Voltage VDC ±13 to ±28
Physical
Weight g 53 ± 2
Diameter below mounting surface mm Ø 25.45 Max
Height – bottom to mounting surface mm 14.2 Max
Case Material 300 Series Stainless Steel
